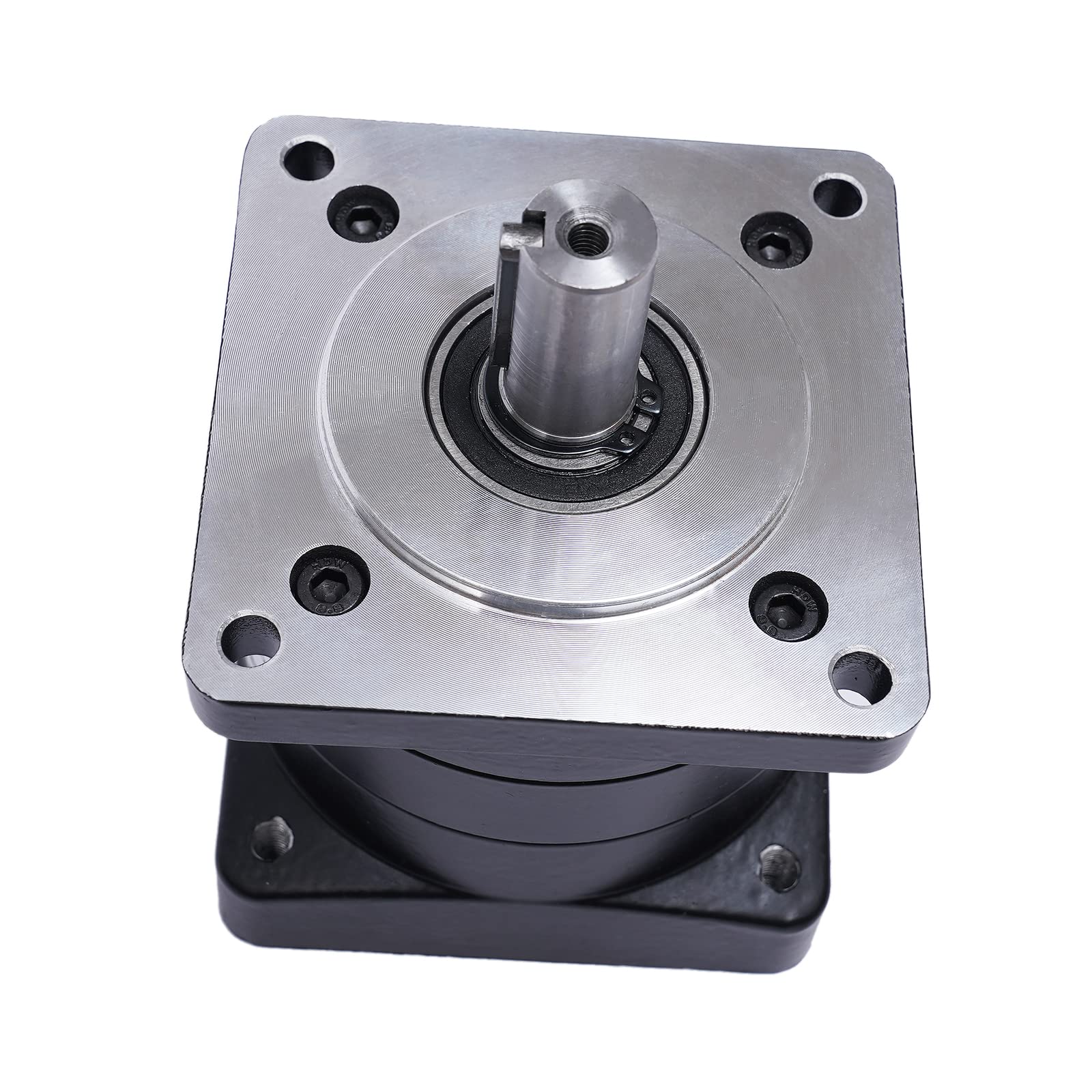

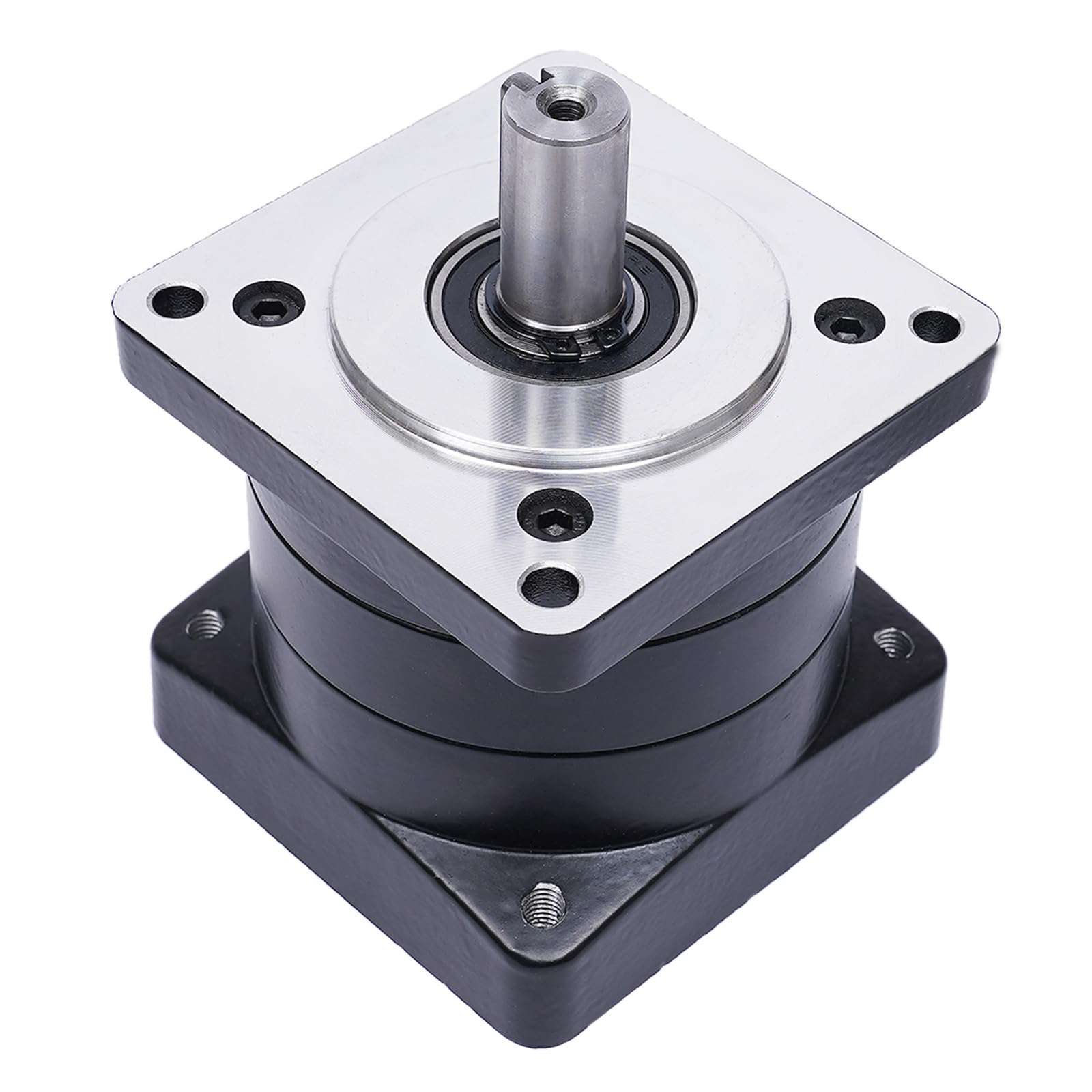

Nema34 Planetary Gearbox 5:1/6:1/20:1 Ratio - High Torque Speed Reducer Gear Head for Stepper Motor 3000RPM - Perfect for CNC Machines, 3D Printers & Industrial Automation Equipment

Features:Input Shaft 14mmOutput Shaft 16mmReduction Ratio 6:1Body Length (Mm) 79Specified Load (N.m) 30Maximum Load (N.m) 50Efficiency (%) 95Return Clearance (Arcmin) Less Than 18Rated Input Speed (Rpm) 3000Protection Class (Ip) 65Weight (Kg) 1.8Noise (Db) Less Than 60Life (H) ≈20000Lubrication Method: GreaseMounting: FlangePacking Size: 11.5*11*13cmGross Weight: 1.8kgNet Weight: 1.6kgPackage Includes:1X Planetary Gearbox For Nema34 Stepper Motor

【Product parameters 1】Input Shaft 14mm; Output Shaft 16mm; Reduction Ratio 61; Body Length (Mm) 79; Specified Load (N.m) 30; Maximum Load (N.m) 50; Efficiency (%) 95.

【Product parameters 2】Return Clearance (Arcmin) Less Than 18; Rated Input Speed (Rpm) 3000; Protection Class (Ip) 65; Weight (Kg) 1.8; Noise (Db) Less Than 60; Life (H) ≈20000; Lubrication Method Grease; Mounting Flange; Packing Size 11.5*11*13cm; Gross Weight 1.8kg; Net Weight 1.6kg.

【Fitment】This nema34 planetary gearbox mainly matches the stepper motor to reduce speed and increase torque. Widely used in CNC field on mill,lathe,bench,packaging machine etc.

【Package includes】1X Planetary Gearbox For Nema34 Stepper Motor

【Excellent after-sales service】We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.
