HARFINGTON 2pcs 1M 12 Teeth Bevel Gear Set - 8mm Shaft Hole, 1:1 Ratio, 90 Degree Tapered Bevel Pinion Gear - 45# Steel, 1.5 Module for Hardware Mechanical Rotation - Perfect for Robotics, CNC Machines, and DIY Projects

1. Ratio: 1:1, Module: 1.5M (1.5 Module), Steering Angle: 90 Degrees, Fixed Method: M5 Screw Side Fixed, Tooth: 12 Teeth, Shaft Hole: 8mm, Overall Size: 14 x 15mm / 0.55 x 0.59inch2. The bevel gears are made of 45# steel and feature high wear resistance, strong and durable, which takes the quenching and blackening process for a long life time.3. The bevel gear set comes with 2 x Bevel Gears for simplicity and convenient use. Lower contact ratio between gears, higher load capacity.4. Widely used in conveying, agricultural equipment, textile machinery, printing machinery, automotive applications, etc. Suitable for all kinds of mechanical transmission occasions.5. Please note that this 1:1 bevel gear wheel can be only used with 1:1 gear wheel, and can not match the other modulus of teeth.

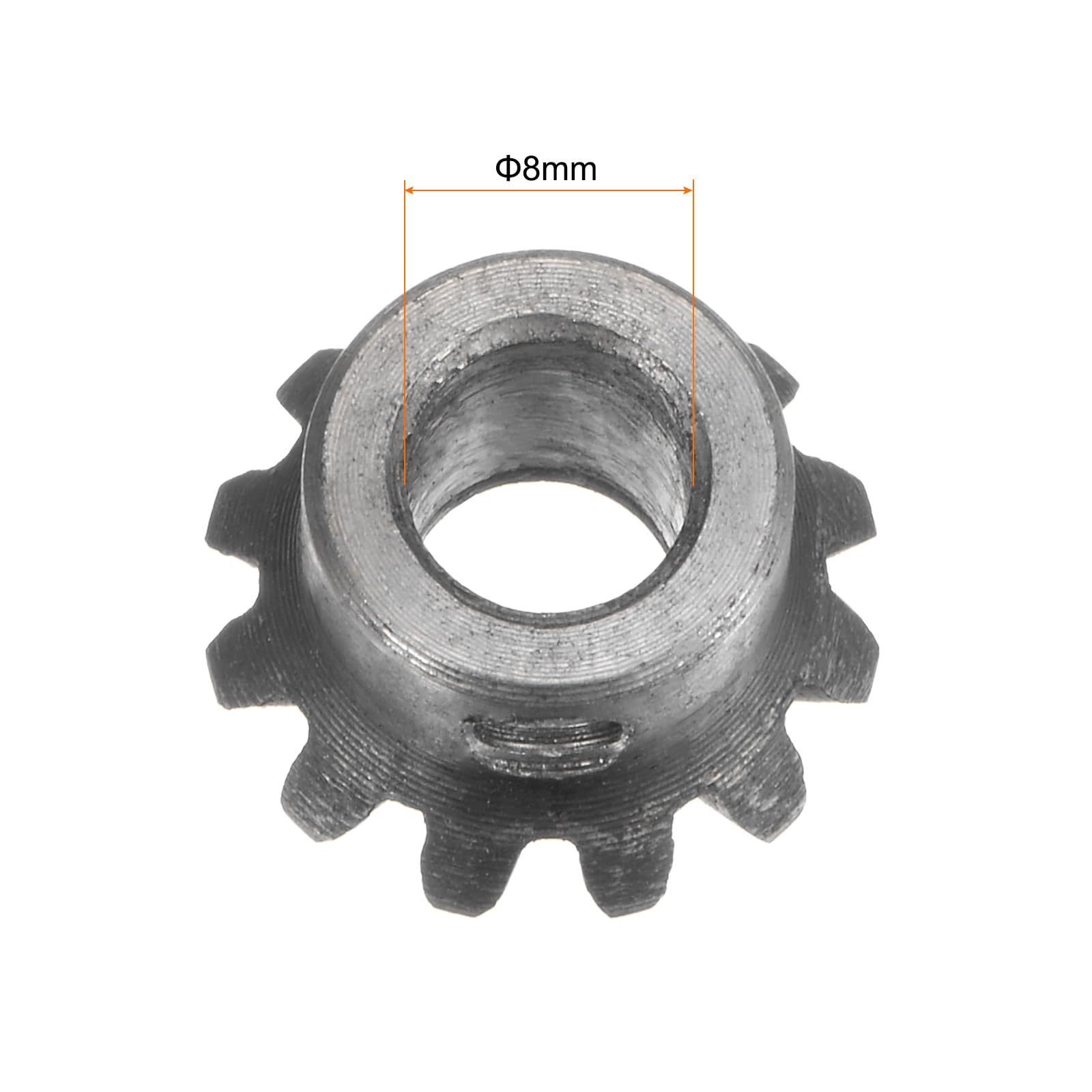

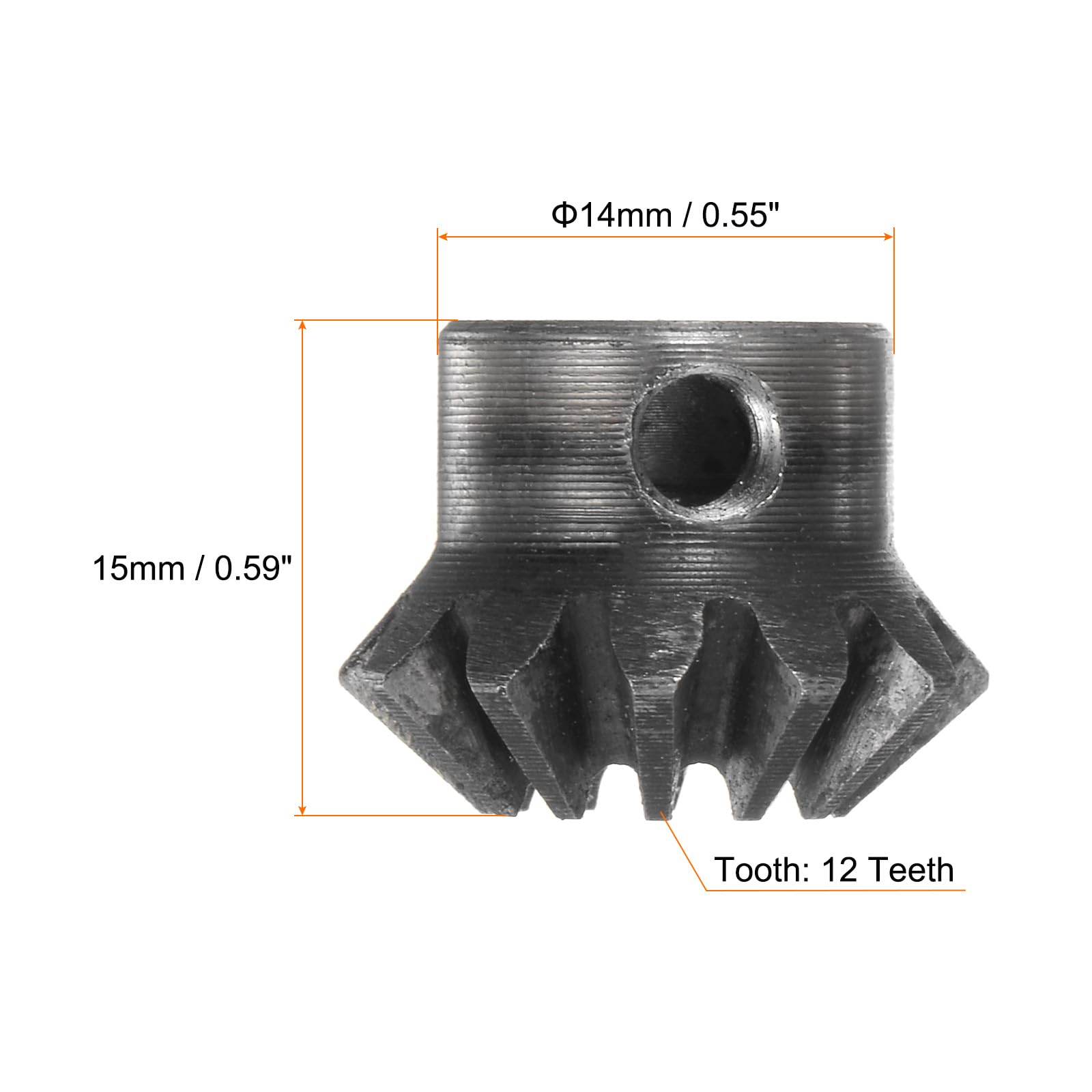

Size - Ratio 11, Module 1.5M (1.5 Module), Steering Angle 90 Degrees, Fixed Method M5 Screw Side Fixed, Tooth 12 Teeth, Shaft Hole 8mm, Overall Size 14 x 15mm / 0.55 x 0.59inch

Material - The bevel gears are made of 45# steel and feature high wear resistance, strong and durable, which takes the quenching and blackening process for a long life time.

Feature - The bevel gear set comes with 2 x Bevel Gears for simplicity and convenient use. Lower contact ratio between gears, higher load capacity.

Application - Widely used in conveying, agricultural equipment, textile machinery, printing machinery, automotive applications, etc. Suitable for all kinds of mechanical transmission occasions.

Notice - Please note that this 11 bevel gear wheel can be only used with 11 gear wheel, and can not match the other modulus of teeth.
