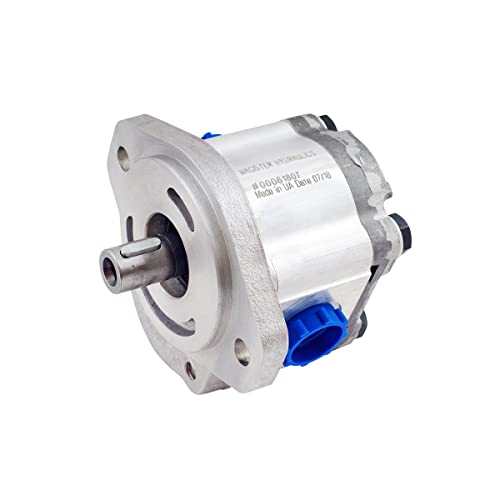

Magister Hydraulics Gear Pump - 7/8" Keyed Shaft, 0.97 CID, 3-12 GPM, CW Rotation, Cast Iron Construction, SAE-12 Inlet & SAE-10 Outlet Ports, 3600 PSI, 2-Bolt B Mounting - Ideal for Hydraulic Systems, Industrial Machinery, and Heavy Equipment Applications

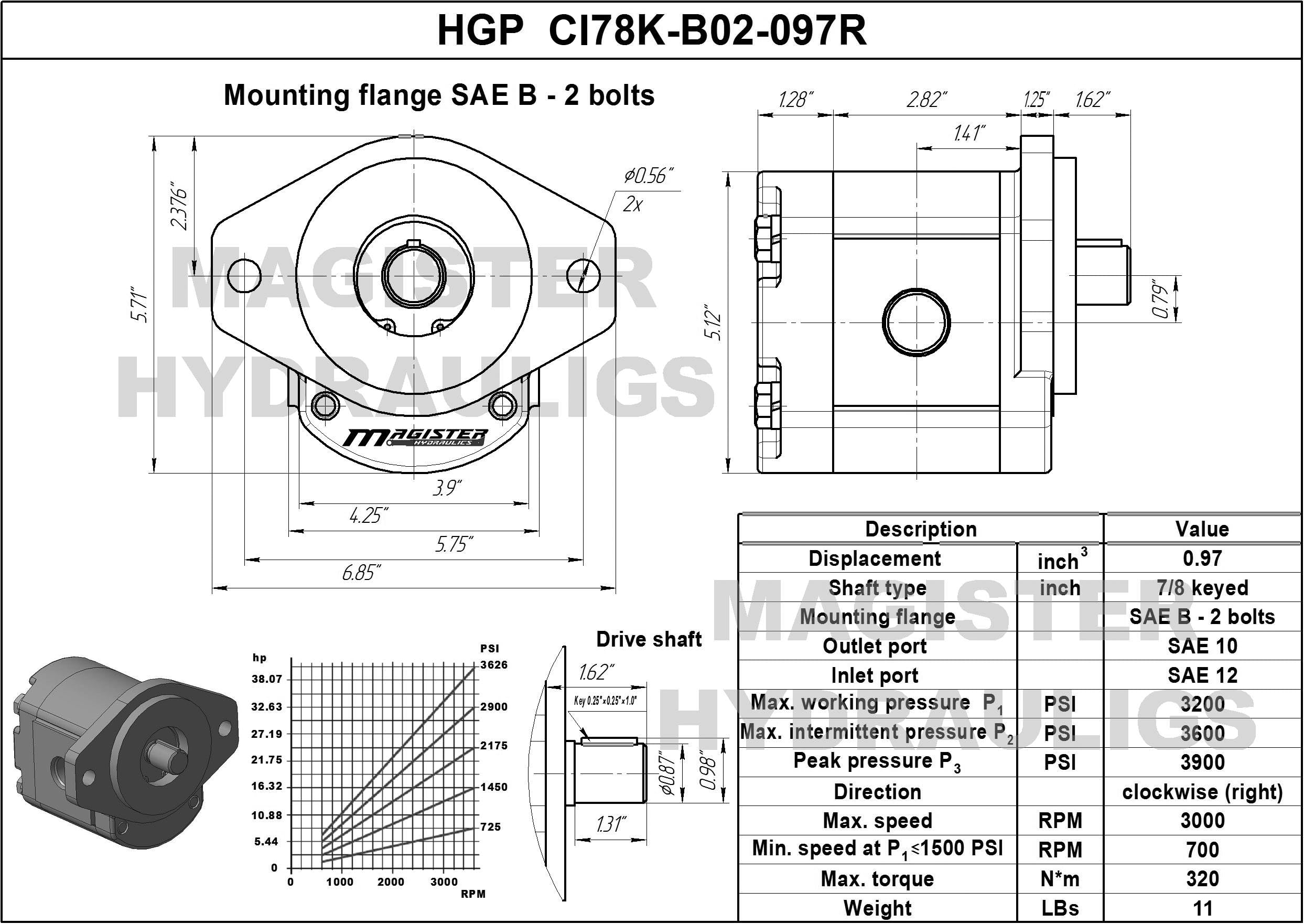

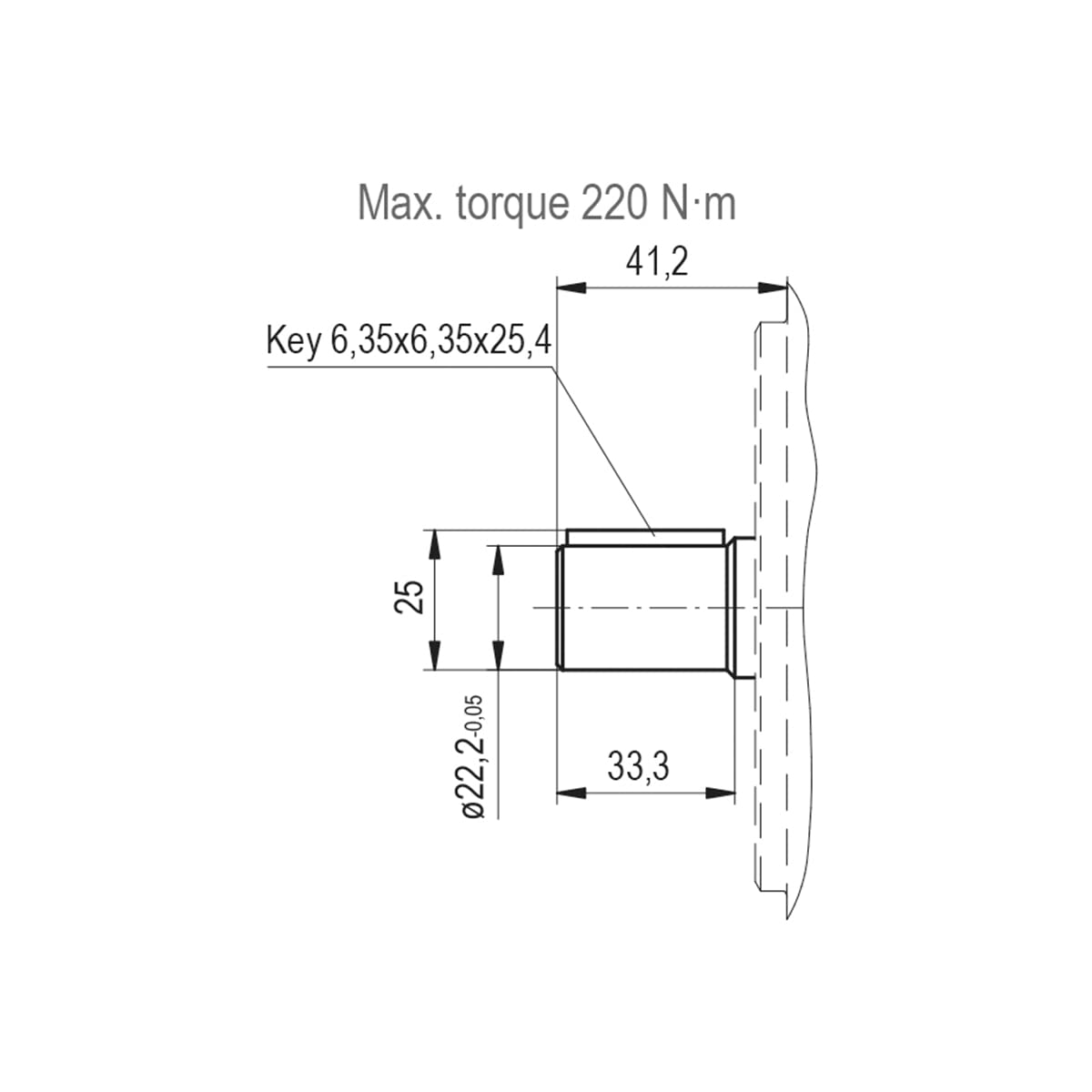

Shaft specs for 7/8" Keyed shaft Magister Hydraulics Gear Pump Gear pumps from Magister Hydraulics are manufactured with thru-bolt design. The seals installed, reduce internal flow of the fluid and help to achieve a high volumetric efficiency. This gear pump has high operational and strength specs. For more details please check the drawing. CID(Cubic Inches Displacement): 0.97 - 2.74Shaft Type: 7/8" Straight KeyedMax RPM: 2500 - 3000 revolutionsGPM @2000 RPM: 8.39 - 23.72 gallonsRotation Direction: Clockwise(CW, Right)/Counter-clockwise(CCW, Left)Mounting Flange: SAE B - 2 BoltsOutlet Port: SAE 10/SAE 12Inlet Port: SAE 12/SAE 16Material: Aluminium Magister Hydraulic Gear Pump is suitable for a variety of mobile equipment applications, such as agriculture, construction, transportation, forestry, garden, etc. ISO 9001:2015 certificateTariff-free, Made in EuropeFree Shipping(Continental US), Warehouse Facilities in the USA1-year warrantyWholesale Discount Technical Date sheet for Magister Gear Pumps 7/8" Keyed Shaft

Displacement 0.97 Cubic Inches

Rotation Clockwise

Max. RPM 3000

Flow @2000 RPM 8.39 GPM

Pressure 3300 PSI
